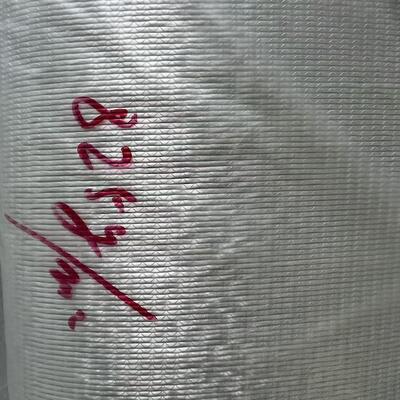

825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection

  • 825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection
Lieu d'origine Chine
Certification ISO 9000
Numéro de modèle ELTM825-1270
Quantité de commande min 500kg
Prix negotiatable
Détails d'emballage Le petit pain est enveloppé avec la feuille de plastique et alors emballé dans un sac tissé. Habitue
Délai de livraison 7 jours
Conditions de paiement T/T, LC
Capacité d'approvisionnement SEMAINE DE 20MT A
Détails sur le produit
Matériel Vagabondage direct en verre d'E Couleur blanc
Texture Combinaison 90° et 0° Largeur 1270 mm
Résine Résines insaturées et autres Application Coffret de batterie pour véhicule à énergies nouvelles
Poids 825G
Laisser un message
Description de produit

825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection



Introduction:

Fiberglass biaxial fabric is a cloth in which the roving is arranged in a two-way direction at 90º (transverse) and 0º (longitudinal), and then stitched with a coil structure. It can be stitched two-way layer yarn with chopped strand mat, polyester surface felt, fiberglass surface felt, carbon fiber surface felt, etc., processed into various types of  composites fabric to obtain specific performance.





Specifications:

Product NO.

Overall Weight

(g/m2)

0°Roving

(g/m2)

90°Roving

(g/m2)

Chopped Roving

(g/m2)

Polyester Felt

(g/m2)

Width

(mm)
ELT 450 450 250 200 / / 150 - 2600
ELT 600 600 336 264 / / 150 - 2600
ELT 800 800 420 380 / / 150 - 2600
ELTP 500 500 250 210 / 40 150 - 2600
ELTM 600 600 250 200 150 / 150 - 2600
ELTM 900 900 336 364 200 / 150 - 2600
ELTM 1050 1050 336 414 300 / 150 - 2600
ELTM 1200 1200 420 430 350 / 150 - 2600
ELTMP 640 640 250 200 150 40 150 - 2600





Features:

● No binder content, good wet out of resin

● Provide mechanical strength of the product i multi direction

● Fiber straight arrangemet, max. usage of fiber strength

● Interspaces between the fibers are small, effectively improve the impact resistance of products





Application:

● Compatiable with reinforeced unsaturated polyester resin, vinlylester resin, epoxy resin, phenolic resin and polyurethane resin etc.

● Forming process includes vacuum infusion molding, pultrusion, hand lay-up, RTM etc.

● The typical end-use applications are FRP boat hull, wind power blade, sports equipment, pultruded profile and auto body etc.





825g unit weight of Biaxial composite glass fiber mat fixed with setting powder, molded FRP products for new energy vehicle battery protection 0
